A helpful addition to your EZVIZ Video Doorphones

If you live in a large house, the SD7 can help extend the communication of your existing systems with the EZVIZ Video Doorphones. By using the SD7 in various activity areas such as the bedroom and kitchen, you no longer have to rush to a distant monitor to answer a ring triggered by the outdoor HP7. With simple taps on the SD7, you can see who’s at the door and let people in immediately.

Learn about the HP7 Video Doorphone >>

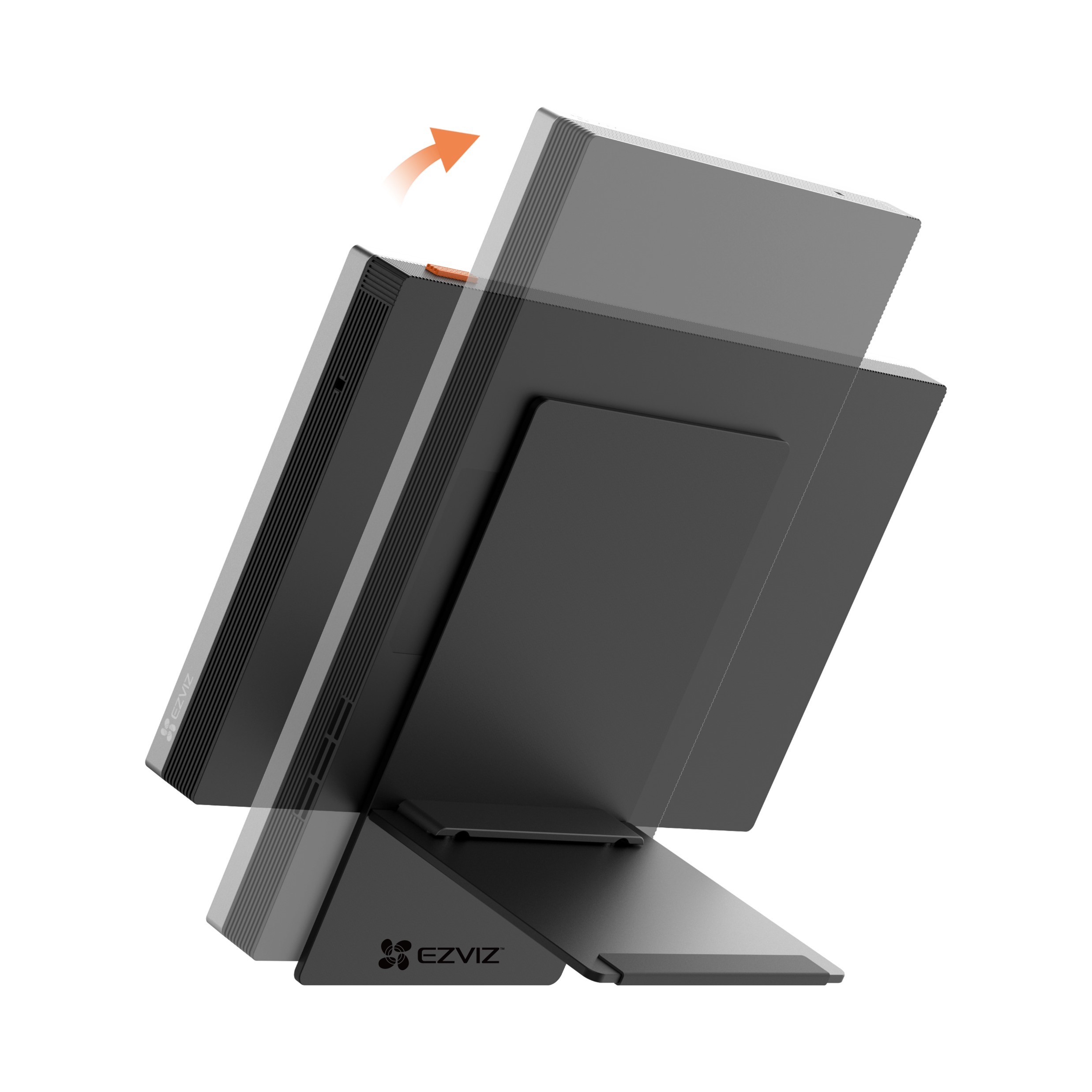

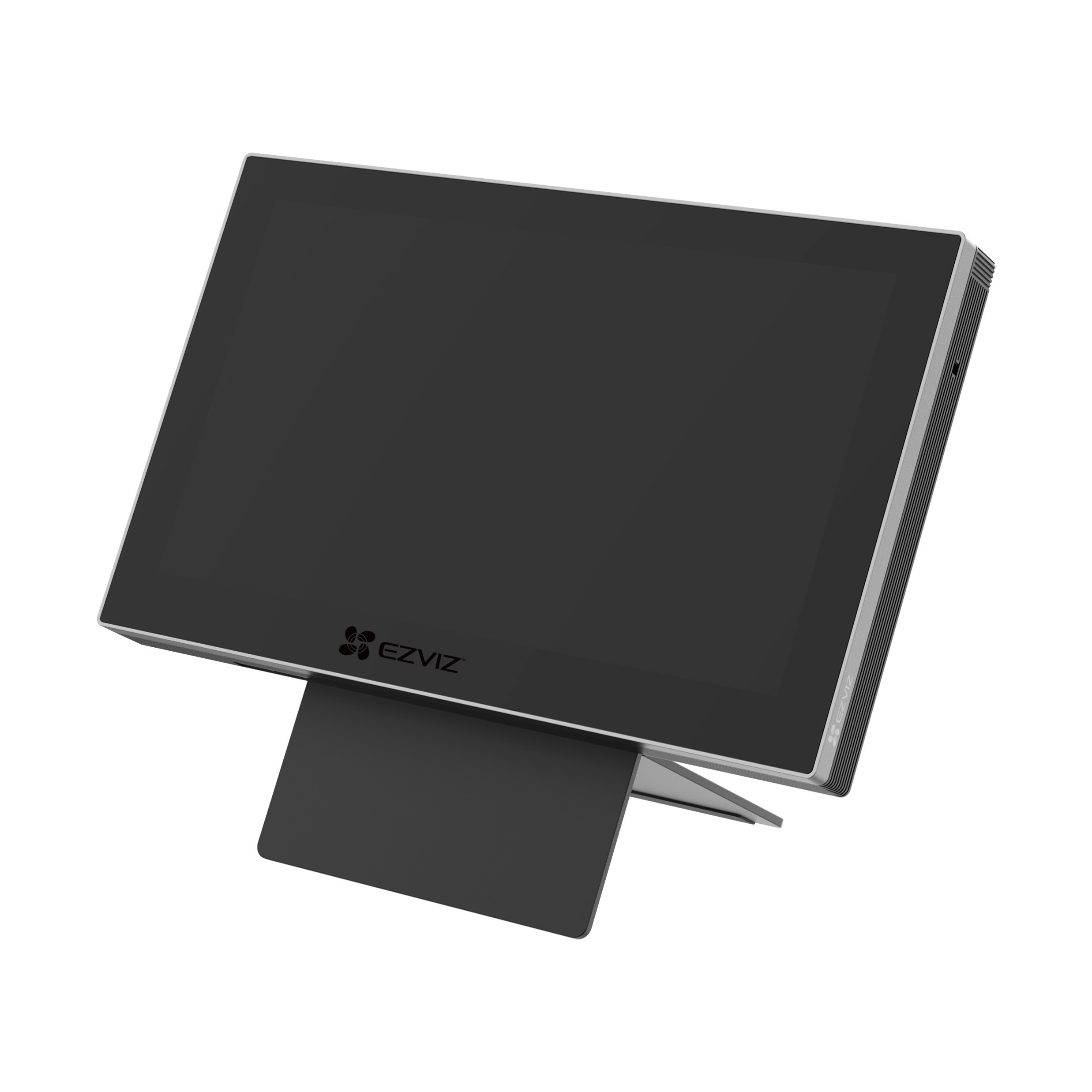

Flexible placements at your convenience

Place the SD7 in a central location in your house so that everyone can walk up to it for security checks.

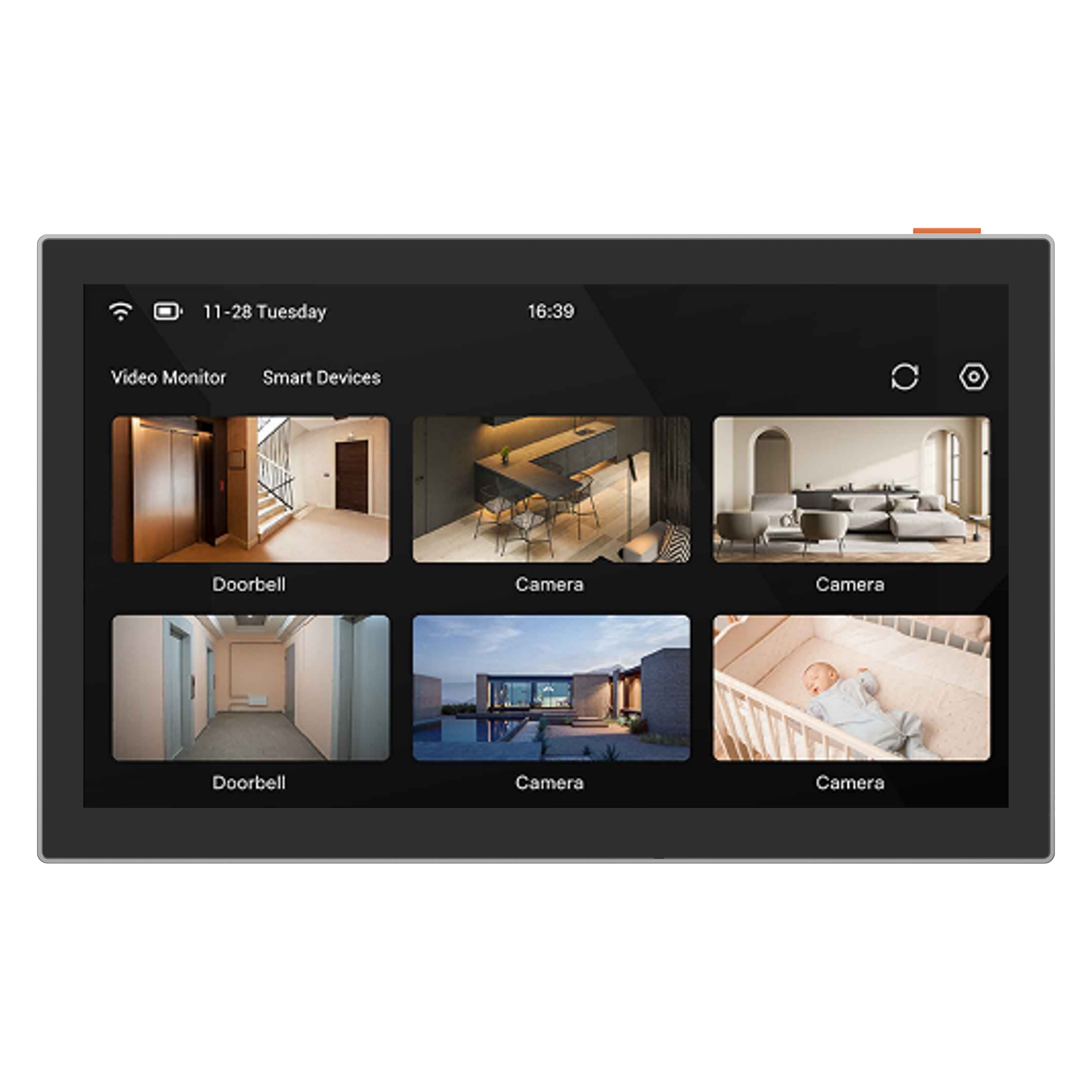

The control hub of your security system

For people who need a control center to fully visualize the use of their EZVIZ home security products – that’s what the SD7 is made for. It keeps all devices well organized in one place with flexible settings, and helps you see what’s going on through different cameras at one quick glance.

An all-in-one monitor for seamless interaction

It is easier than ever to access, control, and manage your EZVIZ security devices. The SD7 is designed to provide smooth user experience and ensure ease of use for all family members, so everyone can enjoy the convenience while customizing a smart home system.

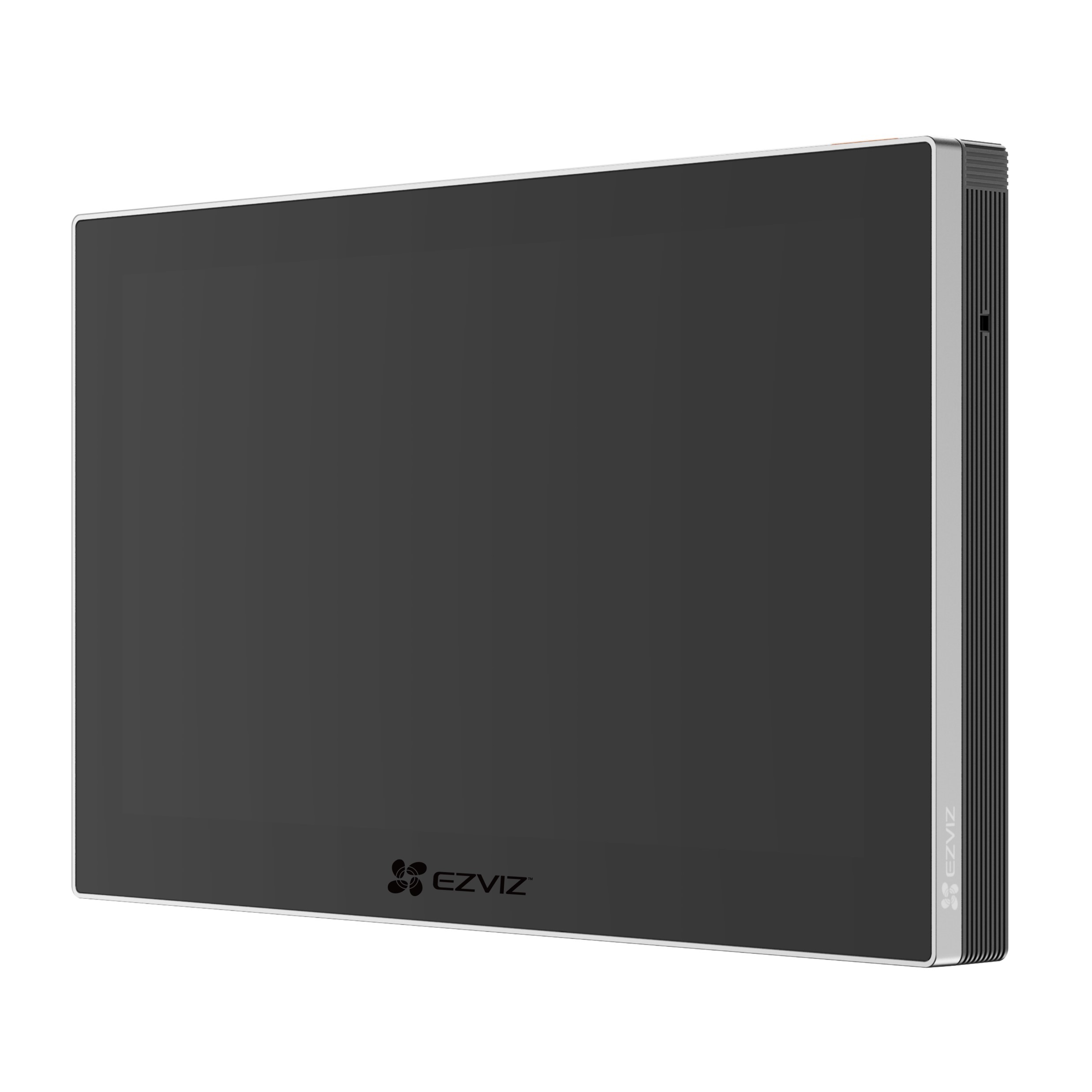

Elevate your home with smart style

The SD7 has a refined, minimalist look while applying simple, uniform, glossy black to different parts of the device. Unlike traditional bulky home monitors, it blends seamlessly into your home’s interior design to meet your needs for a modern aesthetic.

SD7

Smartly run your home security system

Specifications

Specifications
Model	CS-SD7-R100-1WTC
Screen
Screen size	6.97 inch
Resolution	1024 × 600
Touch Screen	Supports
Screen Type	IPS Full Screen
Battery
Battery Capacity	4600 mAh
Interface
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Button	One-switch button
Connectivity
Maximum Access Pixels	Up to 30 EZVIZ Devices (Supports more devices with future OTA upgrade)
Connected Device	4K (Playback supports 5MP maximum)
Protocol	EZVIZ Cloud Proprietary Protocol
General Function	Live View, Video Playback, Cloud Video Encryption
Wireless Parameters
Wireless Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Safety	64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK, WPS
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
General Specification
Operating Temperature	0°C to 40°C
Operating Humidity	less than 95% (No condensation)
Product Size	180.3 × 111.6 × 15.6 mm (7.10 × 4.39 × 0.61 inch)
In the box
In the box	– SD7 Smart Screen
	– Type-C Cable
	– Wall Bracket
	– Installation Sticker
	– Double-sided Sticker
	– Screw Kit
	– Quick Start Guide
Certifications
Certifications	CE / WEEE / RoHS / REACH
